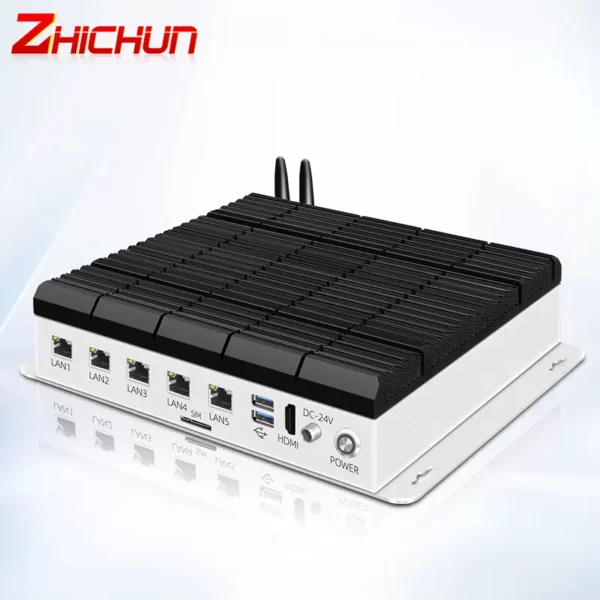

Fans Mini PC With Intel Core I5 I7 10th Generation
Original price was: $599.00.$499.00Current price is: $499.00.
- Industrial Grade Components and dustproof Fans Designs
- Aluminum Alloy material shell, sturdy and durable, anti-corrosion
- Multi-I/O connection: HDMI, USB, LAN, SIM slot, TF card slot, DC port, Audio (support customized)
- Support multi-OS: Windows 10/Linux
- Power supply support 9-36V DC, low consumption, TDP only 28W (12W/15W BIOS optional)
- Support Video display output max resolution up to 4096×2160@24Hz
- Support extension: Built in DDR4 Ram Slot, NVME SSD slot, 2.5 inch HDD slot, Msata slot, WiFi
- Support 4*15W POE, Watchdog, Auto Boot, Wake On Lan, Diskless Boot, Resume by Alarm

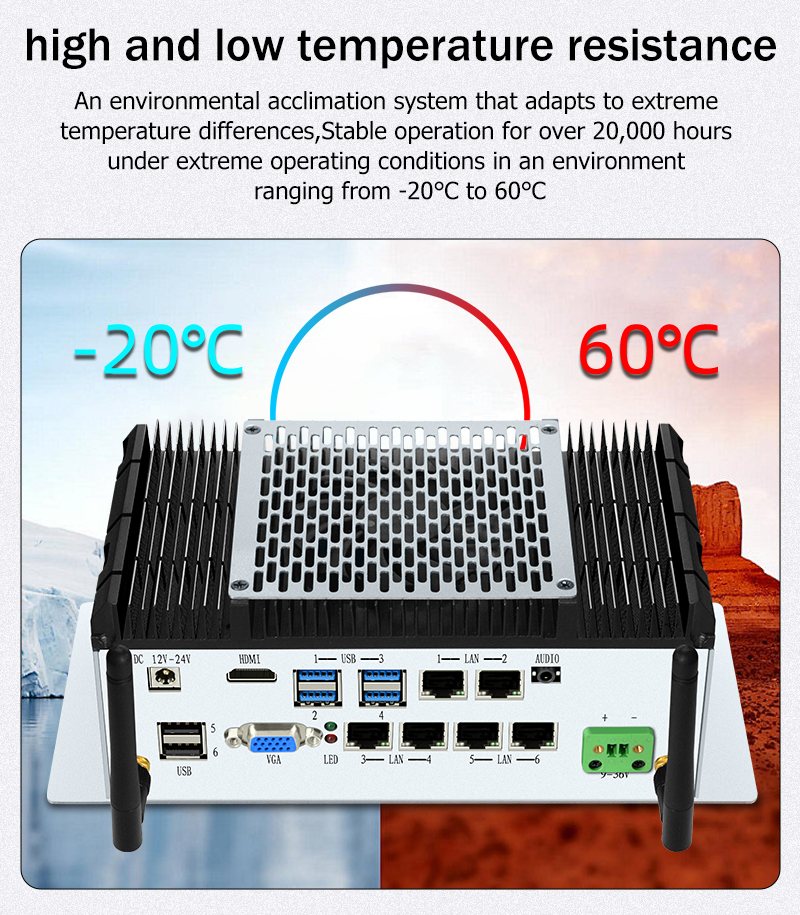

- Suitable for different harsh working envirment, operating temperature: -20°C to +60°C can custom up to 80°C
8 in stock
Chongchang Elite-Series: The “Breathing” Rugged Industrial PC Active Cooling Performance.
Rugged industrial pc designed for automation and control system
With fan for heat heat dissipation but still dustproof.
Total Dust Protection.
Most industrial PCs force you to choose: a fanless design that overheats in high-load automation, or a fanned design that sucks in metal shavings and dust.
We’ve solved that.Designed specifically for CNC Machining Centers, Automated Assembly Lines, and Outdoor Vending Systems,
the Chongchang Elite-Series uses a specialized positive-pressure filtration system to keep your processor cool while keeping the internals surgical-grade clean.
Why Automation Engineers Choose This Model:
Active Thermal Management: Unlike fanless PCs that throttle”(slow down)
when they get hot, our high-static pressure fan allows for 100% CPU utilization in temperatures up to 60°C, ensuring your CNC timing never lags.
Dual-Layer Micro-Filtration: The intake fan is guarded by a medical-grade, replaceable dust filter.
It stops 99% of conductive dust, oil mist, and debris common in factory environments.
Vibration Resistant Build: Internal components are locked in a reinforced aluminum chassis,
rated for continuous operation near heavy-duty vibration motors and pneumatic presses.
Industrial I/O Shielding: Equipped with isolated COM ports (RS232/485)
and dual Intel Gigabit LAN to prevent electromagnetic interference (EMI) from disrupting your PLC communications.
Product Specifications
Basic Parameter
| Sizes | 250*192*56.5mm |
| Net Weigh | 2.5KG |
| Operating System | Windows 10/ Linux |
| Processor | Integrated Intel®I3-1115G4/Max. 4.10GHz Duad-core 4 threads, TDP 28W |
| RAM | 8GB, Support DDR4 3200 MHz, 2 * non-ECC SO-DIMM Slot, Up to 64G |
| ROM | 128GB SSD, support 1*SATA3.0(7P)+1*M.2-M slot PCIex4 NVMe SSD 2242/2280 |
| GPU Graphic | Intel® UHD Graphics, up to 48 EUs, 1.25Ghz |
| WIFI | 2.4GHz WIFI |
| BT | BT4.0/BT5.2(optional) |
| Color | Sliver+black |
| Material/Structur | Aluminum alloy fanless |
| Mounting type | Desktop type/ Embedded type |
| System Chip | Base on Tiger Lake, integrated CPU |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| Power |
External Power Adapter or open power |
| Input Voltage | DC 24V |
| Output Power | 60W and more |
I/O Interface
| POWER | 1*Power switch, DC 24V Power Input Φ2.5mm Jack, 1 * ATX 4P Power Input Right Angle Connector |
| LAN | 5* Intel® I211-AT GBE LAN Chip(10/100/1000 Mbps, RJ45)，(Support 4*15W POE) |
| USB | 2*USB3.0, 4*USB2.0 |
| 4G | Support 4G/5G, with 1 * SIM Card slot, 4G/5G module card(optional) |
| Display Interface | 1 * HDMI(TYPE-A): max resolution up to 4096×2160@24Hz |
| COM | 4 * COM (2* RS232+2*RS232/RS485) |
| WIFI | 2.4 GHz WIFI |
| SATA3.0 | 1*2.5”HDD extend |
| M.2 | 1 * M.2 Key-M Slot( PCIe 4x NVMe SSD) |
| M.2 | 1 * M.2 Key-B Slot (3042/3052, Support 4G/5G) |
| M.2 | 1 * M.2 Key-E Slot (PCIE, Support WIFI+BT, 2230) |
Environmental Parameters
| Operating Temperature | 0℃～60℃ |
| Storage Temperature | -20℃～75℃ |
| Relative Humidity | 5%-95%, non-condensing |
| Operating vibration | 0.5g rms/5-500HZ/random/operating |
Optional Configuration
Free accessories
| Accessory | Description |
| Adapter | 1 pcs of 24V DC adapter |
| Power cord | 1 pcs of 1.5m |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
